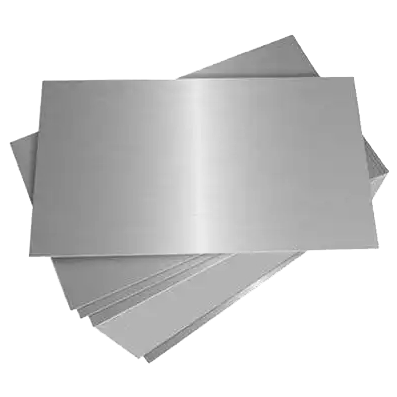

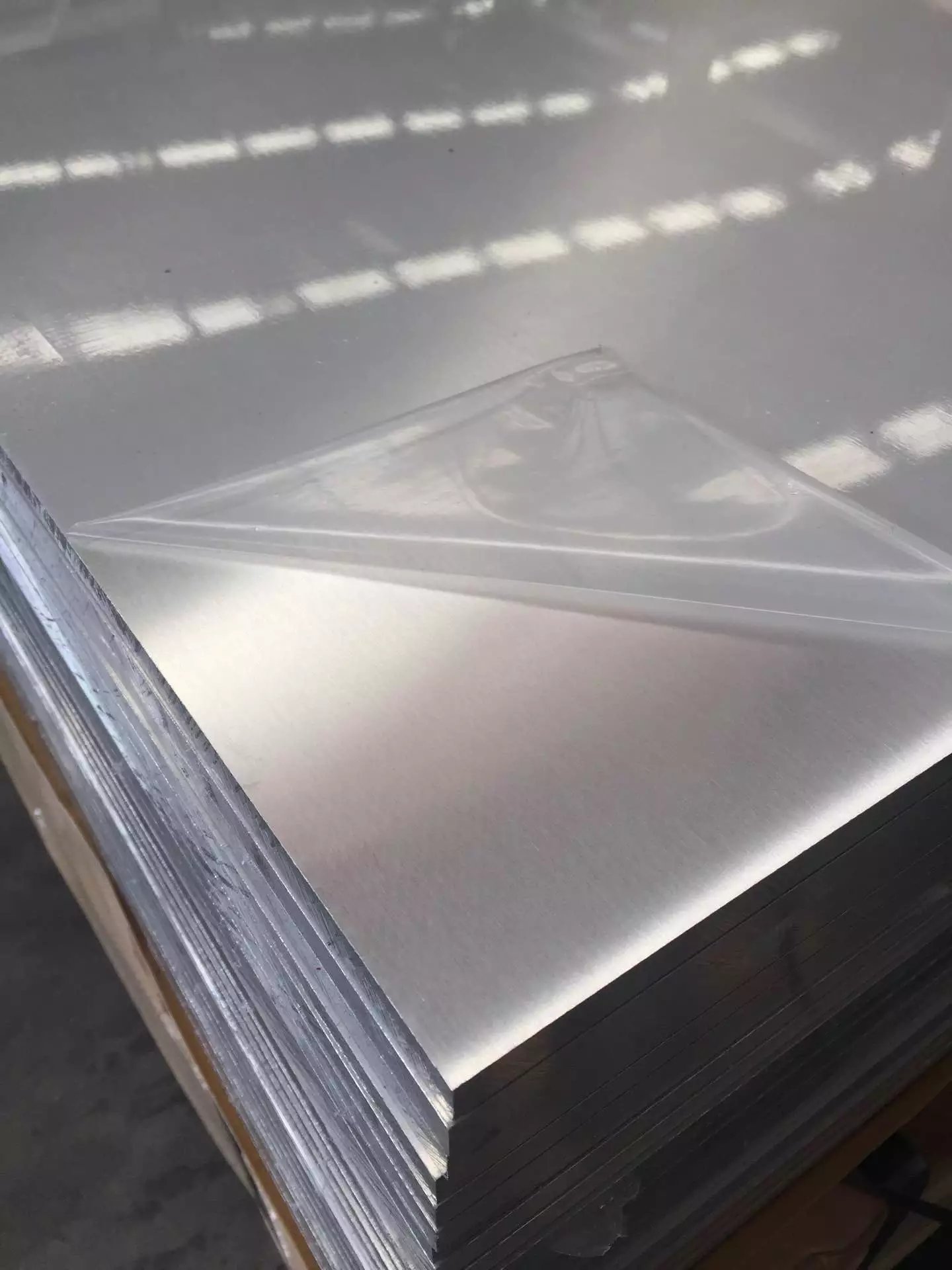

1060 Aluminum sheet
1060 aluminum sheet is noted for its excellent welding characteristics and formability by cold or hot working with commercial techniques.1060 aluminium sheet is relatively low strength, essentially pure aluminium alloy with many different tempers, such as O (annealed), H12, H14, H16, H18, etc. It cannot be hardened by heat treatment but only from cold working.1060 aluminum sheet Have good elongation and tensile strength, can satisfy completely the requirements of conventional processing (stamping, stretch) high formability. For industrial pure aluminium, high plasticity, corrosion resistance, electrical conductivity and thermal conductivity, but strength is low, heat treatment can not be improved machinability is bad; Gas welding, hydrogen welding and resistance welding, is not easy to brazing; Under various pressure processing and extension, bending.
| Content (max) | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | - | 0.05 | 0.03 | 0.15 | Remain |
| Alloy Temper | Specified | Tensile strength | Yield strength | Elongation | ||||||
| Thickness(in.) | (ksi) | (ksi) | (%) | |||||||
| 1060-O(annealed) | 0.006-0.019 | 8.0-14.0 | 2.5 | Min15 | ||||||
| 0.020-0.050 | Min22 | |||||||||
| 0.051-3.000 | Min25 | |||||||||
| 1060-H12/1060-H22 | 0.017-0.050 | 11.0-16.0 | 9.0 | Min6 | ||||||
| 0.051-2.000 | Min12 | |||||||||
| 1060-H14/1060-H24 | 0.006-0.019 | 12.0-17.0 | 10.0 | Min1 | ||||||
| 0.020-0.050 | Min5 | |||||||||
| 0.051-1.000 | Min10 | |||||||||
| 1060-H16/1060-H26 | 0.006-0.019 | 14.0-19.0 | 11.0 | Min1 | ||||||
| 0.020-0.050 | Min4 | |||||||||
| 0.051-0.162 | Min5 | |||||||||
| 1060-H18/1060-H28 | 0.006-0.019 | Min16.0 | Min12.0 | Min1 | ||||||
| 0.020-0.050 | Min3 | |||||||||
| 0.051-0.128 | Min4 | |||||||||
| 1060-H112 | 0.250-0.499 | Min11.0 | Min7.0 | Min10 | ||||||
| 0.500-1.000 | Min10.0 | Min5.0 | Min20 | |||||||
| 1.001-3.000 | Min9.0 | Min4.0 | Min25 |
